The innovative Cosiflor System
Innovations
Perfection in modern profile design
The new aluminium profile stands out thanks to its elegant and timeless appearance. It is completely closed, making it is easy to clean. The slender rail fits optimally into pleated blinds and achieves unparalleled stability due to an improved cross section.

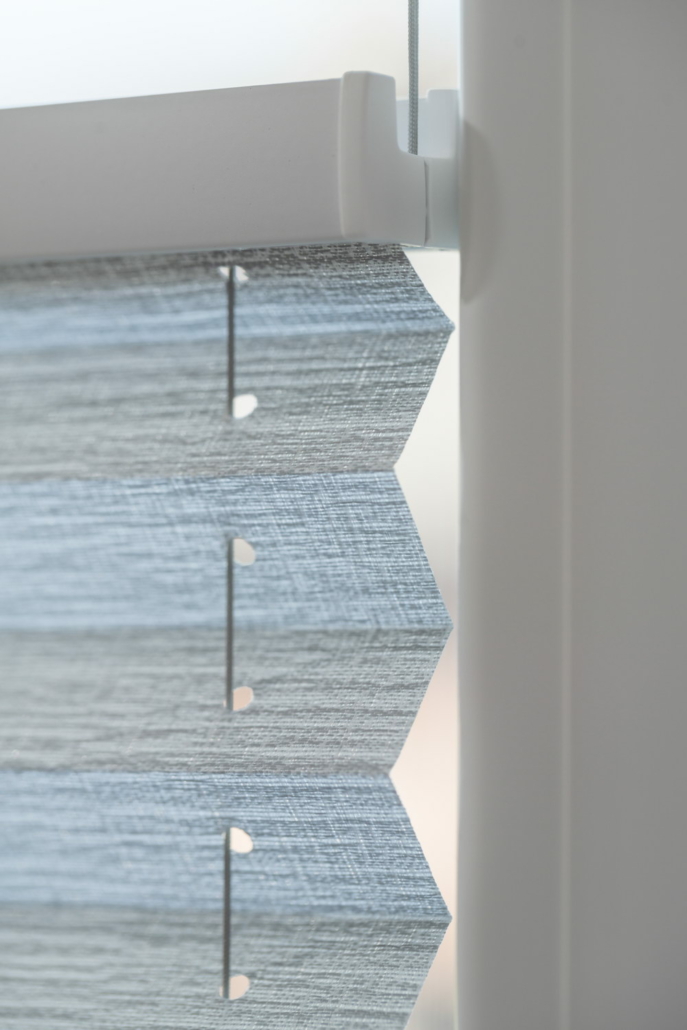

Cleverly hidden – the mounting clip
With a height of 1.4 mm the clip for beading, bracket or ceiling mounting set in the profile disappears almost invisibly and allows only a minimal light gap. When disassembling, a small tab will help to avoid damage to the window or ceiling.
Rail colours with colour-coordinated components
Colours are incredibly effective when designing living spaces – for this reason, we have revised our rail colours and in future the plastic parts will optimally match the colour of the rail. 5 rail colours are available for the majority of the Cosiflor pleated blind systems: matt white, matt dark brown, matt anthracite, anodized silver and anodized bronze. The colours matt grey and brushed aluminium are additionally offered for the individual models. You can find all rail colours under the product information.
Cut from the same cloth – uniform profile appearance
No matter whether as standard or special model types. All the rails have the same appearance and fit together optimally. Pioneering design combined with perfected technology.
Tensioned and cleverly bonded – VS 2 Slide and VS 2 Slide Comfort
Both models are mounted to the window without the need for drilling with the use of adhesive rails – a must-have for rented flats. The handle bar is guided in the adhesive rail and keeps the pleated blinds in position – even with tilt and turn windows. The two models form a product line and complement each other perfectly. While the VS 2 Slide scores with its low rail and is preferably used on narrow windows, the VS 2 Slide Comfort is highly suitable for wider windows. The adhesive solution can even be removed after several years without leaving any residue behind.

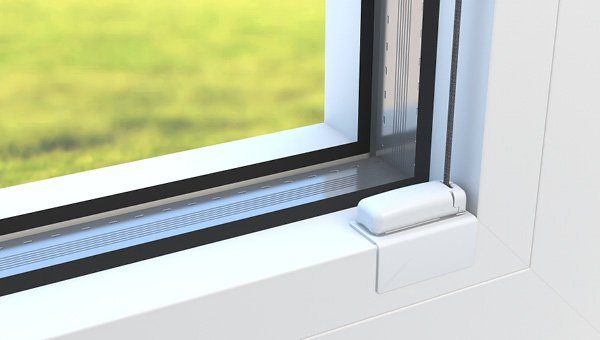

Mounting in the beading without drilling using the tensioning shoe bottom with a sticky pad
Not only in rental properties is the installation with the tension shoe with a sticky pad a true alternative to the traditional mounting in the beading with drilling. The adhesive pads are made from a single mould with the tension shoe components and are bonded directly in the glazing rebate – the clamping shoe top parts of the pleated blinds can be secured directly to it. The mounting can be performed within a few minutes and the disassembly can be performed easily even after several years and without leaving any residue behind.
F1: Cord lock enables intuitive control
The new patented cord lock enables new options in the operation and can be used for both free-hanging, rectangular systems as well as slope systems. For opening, simply pull the cord to the middle of the pleated blind and gravity will take care of the rest. For closing, you can pull the cord in any direction, even vertically downwards. The response time for the return is extremely quick. Even after triggering as per the Child Safety Directive, the cords will not run into the blind. This function is made possible by a patented, innovative technology.

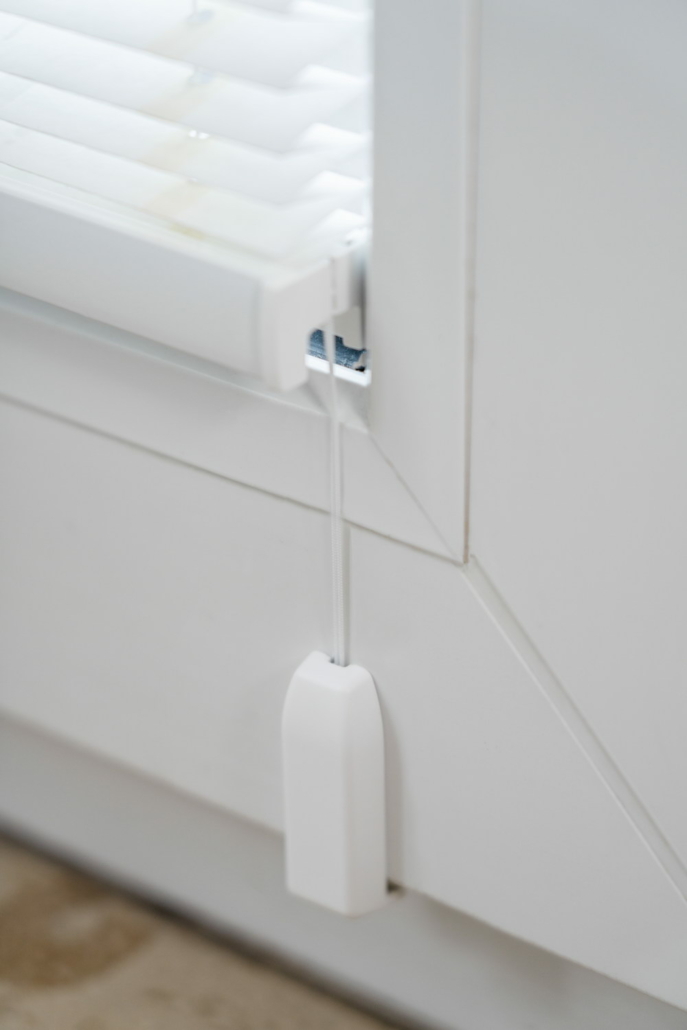

Cord tassel
The topic of child safety is also of the greatest of importance in the area of sun protection. For this reason, all cord-operated systems are delivered with a safety cord tassel as standard. This opens as soon as the cords are pulled apart 60 mm and are simultaneously loaded with 6 kg. The subsequent assembly is very simple. The cord tassel is optionally available without the child safety function.

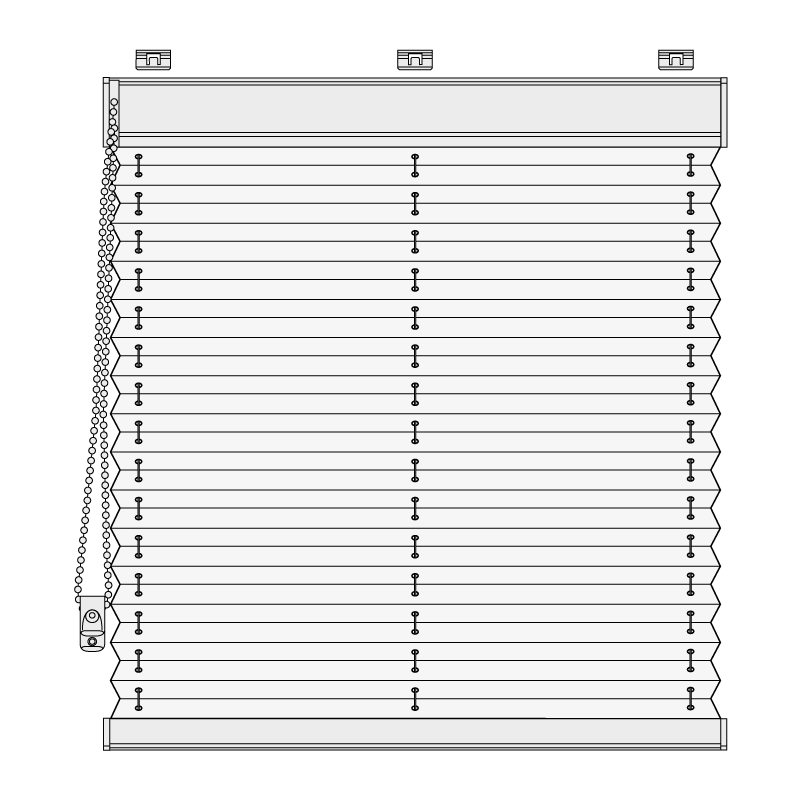

F4: Chain operation with child safety break away gear
All chain-operated units are provided with a child safety gear. This will be triggered as soon as a load of more than 6 kg is applied to both sides of the chain. The chain wheel can then be put back again in just a few simple steps.
FE A – the battery solution for price-conscious technology enthusiasts
On the electric system FE A, the curtain of the pleated blind system can be moved to the desired position with a powerful 7.4 V motor. With 2,6000 mAh, the battery has a remarkably high storage capacity and will supply the motor over a long period of time. Here, it can be integrated into the head rail and as a result is not visible. Despite its extraordinary output and capacity, this electric system is priced in the entry-level range and offers an excellent price-performance ratio. The electric pleated blinds can be operated individually or as groups. The remote control operates via radio, ensuring that the comfort is ensured everywhere.

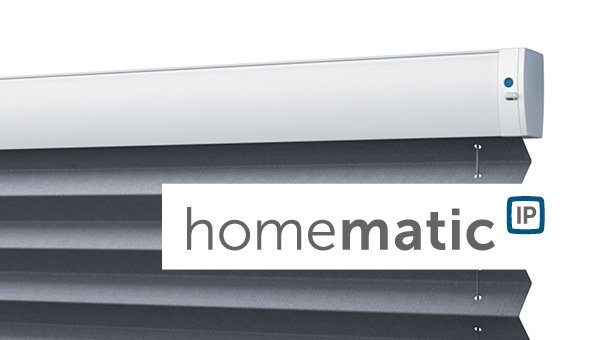

Ready for smart pleated blind systems with FE Homematic IP
Automate the control of your pleated blind system using the system of the market leader – Homematic IP. An integrated battery motor moves the curtain of the pleated blind system to the desired position. Operation is done via smartphone app, optional radio remote control or voice control. Of course, the motor can also be connected with other Homematic IP components such as window contacts, sun sensors, etc. In this manner, you can benefit from the numerous possibilities and functions available to your SmartHome.

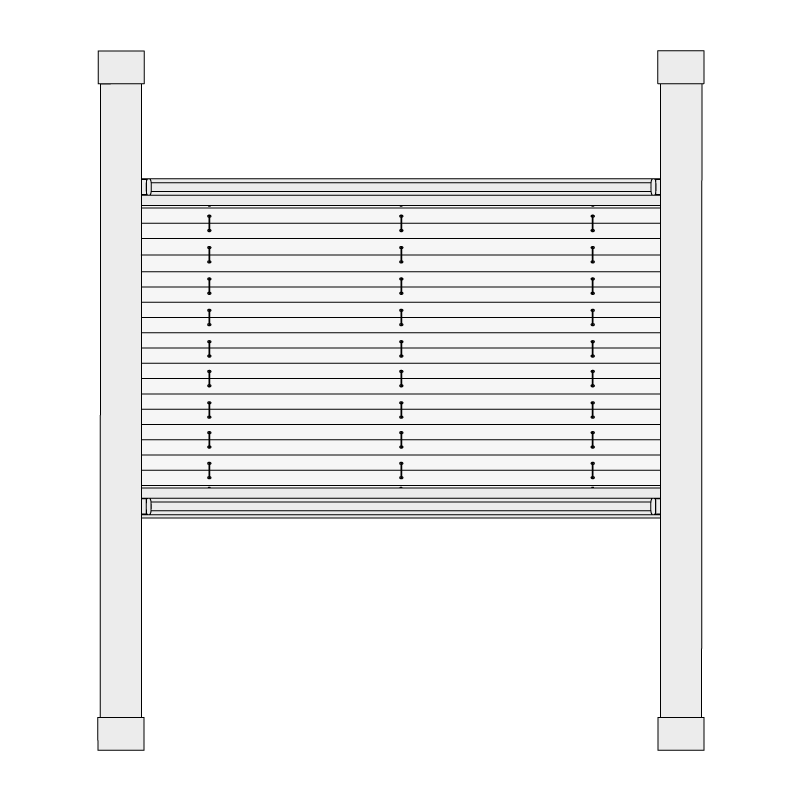

Cleverly designed – the pioneering solution for roof windows
The DF Comfort models are optionally equipped with magnetic fixation, ensuring a firm securing of the upper rail. The U-rails ensure a clearly minimised incidence of light and cleverly hide all mounting elements, while the sliders inserted in the back ensure a harmonious guidance of the handle bar. All Comfort models are optionally available with a brush strip, which additionally ensures a minimisation of the incidence of light.
Cosiflor System für Honeycomb and Pleated Blinds
Technical Product Information
Colours of rails and plastic components
For the majority of the Cosiflor pleated blind systems, 5 standard rail colours are available: white matt, black-brown matt, anthracite matt, silver anodized and bronze anodized. For individual models the colours matt grey and brushed aluminum are also available (surcharge). Further RAL-colours are available on request. Please ask for prices and lead time.
Rails and plastic components are delivered in the following colour combinations:
Rail colour: white matt (powder-coated)
Plastic colour: white
Rail colour: silver (anodised))
Plastic colour: grey
Rail colour: black-brown (powder-coated)
Plastic colour: black-brown
Rail colour: bronze (anodised)
Plastic colour: bronze
Rail colour: anthracite (powder-coated)
Plastic colour: anthracite
Rail colour: brushed aluminium (brushed and anodised)
Plastic colour: grey
Rail colour: grey matt (powder coated)
Plastic colour: grey
Operating options
Operation of pre-tensioned pleated blinds.
There are 2 different operating handles and a handle bar to choose from. Some of the operating options depend on the selected model type.
Operating handle
- Orders without any remarks are delivered by default with this operating handle.
- Operation with the operating rod is possible.
Design handle (surcharge)
- Visual upgrade by use of a powder coated design handle made of high quality metal alloy.
- Operation with the operating rod is possible.
Handle bar VS 2 Slide
- Orders for VS 2 Slide blinds are generally delivered with the handle bar.
- Due to the handle bar there are no protruding operating elements.
- Operation with the operating rod is possible.
Handle bar VS 2 Slide Comfort
- Orders for VS 2 Slide Comfort blinds are generally delivered with the handle bar.
- Due to the handle bar there are no protruding operating elements.
- Operation with the operating rod is possible
Operation of freehanging pleated blinds
There are 6 different operating options for freehanging pleated blinds to choose from. These model types generally have a fixed head rail and a freely movable hanging with bottom rail.
Cord lock
- Through the operation of the cord the hanging of the pleated blind is moved to the desired position.
- The cord lock ensures the latching.
F Touch
- Through the operation of the bottom rail the hanging of the pleated blind is moved to the desired position.
- Not possible in combination with guide wires.
Chain
- Through the operation of the chain the hanging of the pleated blind is moved to the desired position.
Motorised blind FE A
- An integrated 7.4 V battery motor moves the fabric of the pleated blind system into the desired position.
- It is operated by a radio remote control.
Motorised blind FE Homematic IP
- An integrated 11.1 V battery motor moves the fabric of the pleated blind into the desired position.
- It is operated by smartphone app or optional by remote control.
Motorised blind FE
- The fabric of the pleated blind is moved to the desired position by an integrated 24 V electric motor.
- It is operated by remote control or switch.
Operation of pleated roof blinds
Roof blinds are mostly installed in roof sections of conservatories or under glass roofs. Here also, there are several operating options to choose from. Tension wires that run inside the pleated roof blind, guide the blind parallel to the window.
Operating handle
- Orders without any remarks are delivered by default with this operating handle.
- Operation with the operating rod is possible.
Design handle (surcharge)
- Visual upgrade by use of a powder coated design handle made of high quality metal alloy.
- Operation with the operating rod is possible.
Crank
- The blind is operated by using a crank.
Motorised blind PLE Homematic IP
- An integrated 11.1 V battery motor moves the fabric of the pleated system into the desired position.
- It is operated by smartphone app or optional by remote control.
Motorised blind PLE
- The fabric of the pleated system is moved to the desired position by an integrated 24 V electric motor.
- It is operated by remote control or switch.
Operation of pleated roof window blinds
There are special model types and operating options available for roof window blinds.
Operating handle (for DF 20, DF 30)
- Orders for DF blinds are delivered by default with this operating handle.
- Operation with the operating rod is possible.
Handle bar DF Comfort (for DF 20)
- Orders for DFC blinds are generally delivered with the handle bar.
- Operation with the operating rod is possible.
Design handle (surcharge) ( for DF 20)
- Visual upgrade by use of a powder coated design handle made of high quality metal alloy.
- Operation with the operating rod is possible.
Operating Aids and Fitting Options
Operating rod or crank
Operating rod without joint
- in combination with operating handle for operating rod (DF 20, PL)
Operating rod DFC / VS 2 Slide / VS 2 Slide Comfort
for DF Comfort, VS 2 Slide and VS 2 Slide Comfort blinds with handle bar
Operating rod with joint
- in combination with operating handle for operating rod (VS, PL, DF 20, SR 1 S)
Crank
- for crank operated blinds
Fitting options for Cosiflor pleated blinds
There are several ways to fit Cosiflor pleated blinds. Depending on structural conditions, desires, needs and requirements, the appropriate fixing method is chosen. The made to measure pleated blind can be fitted to almost any window or door.
Tension shoe
- for fitting in the window beading or face fixing
Clip
- for fitting in the window beading, ceiling or for face fixing
Beading bracket
- for fitting on the glazing bead
Bracket
- for fitting on the casement
Clamp bracket
- for screwless fitting on the casement
Adhesive rail VS 2 Slide and VS 2 Slide Comfort
- for screwless fitting on the glass
- with side channels and guided handle bar
Clamp bracket Slim
- for screwless fitting on the casement
- the blind runs inside the beading

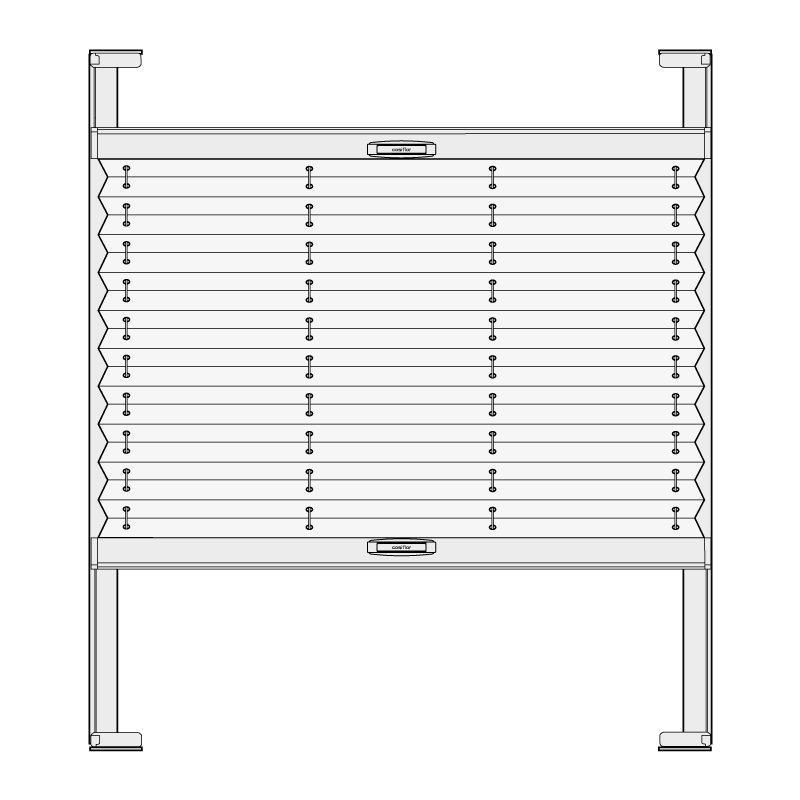

Adhesive rail VS 2 KL
- for screwless fitting on the glass
Adhesive tensioning shoe (only VS 2)
- for fitting in the window beading with adhesive plates
- the blind runs inside the beading
Mounting plate (only VS 2)
- for fitting in the window beading installation even with small depths
- the blind runs inside the beading
You will find an overview of our range of models here:

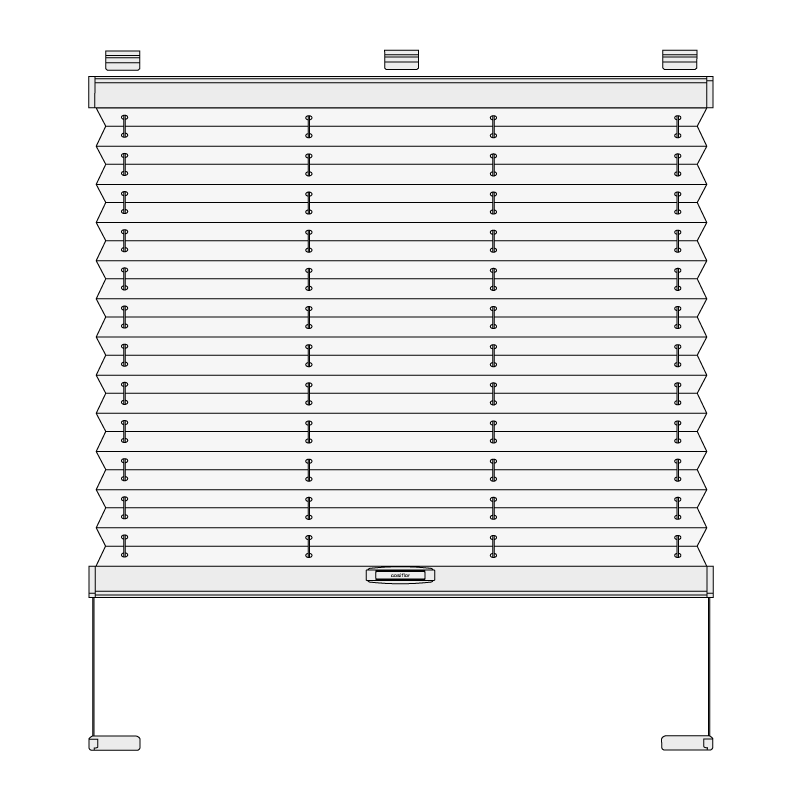

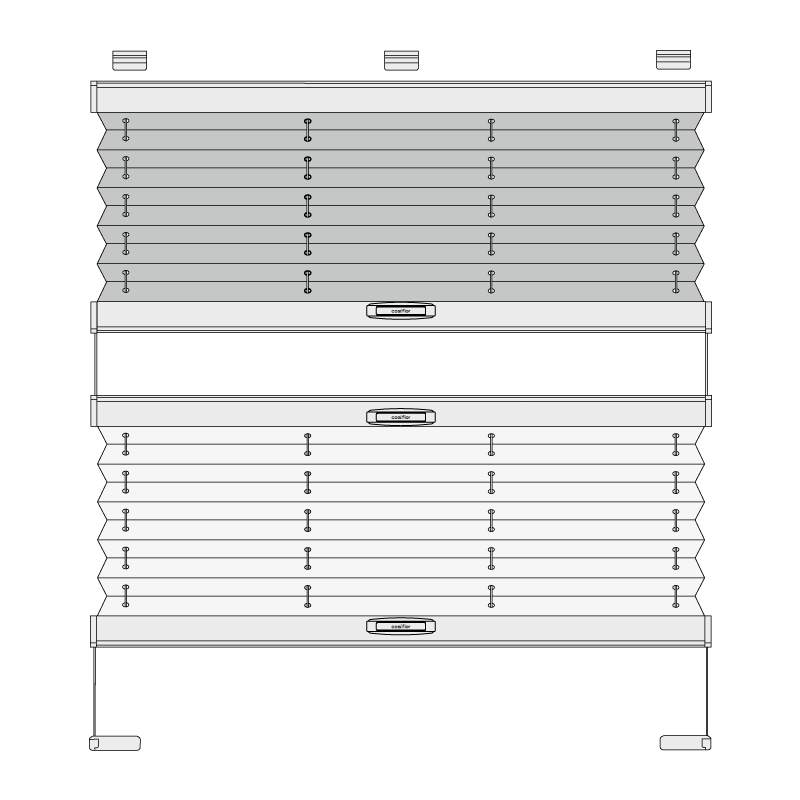

Pre-tensioned blinds
For vertical windows, tilt-and-turn windows and balcony doors.
Size range: max. width 150 cm (max. width VS 2 SC 180 cm) / max. height 150 cm or max. width 120 cm / max. height 220 cm
Freehanging blinds
For vertical windows, tilt-and-turn windows and balcony doors.
Size range F1, F4, FE: max. width 230 cm, max. height 260 cm
Size range F2: max. width 120 cm, max. height 220 cm / F3: max. width 150 cm, max. height 260 cm / F Touch: max. width 230, max. height 210 cm
Pre-tensioned blinds
For vertical windows, tilt-and-turn windows and balcony doors.
Size range: max. width 150 cm / max. height 150 cm or max. width 120 cm / max. height 220 cm
Freehanging blinds

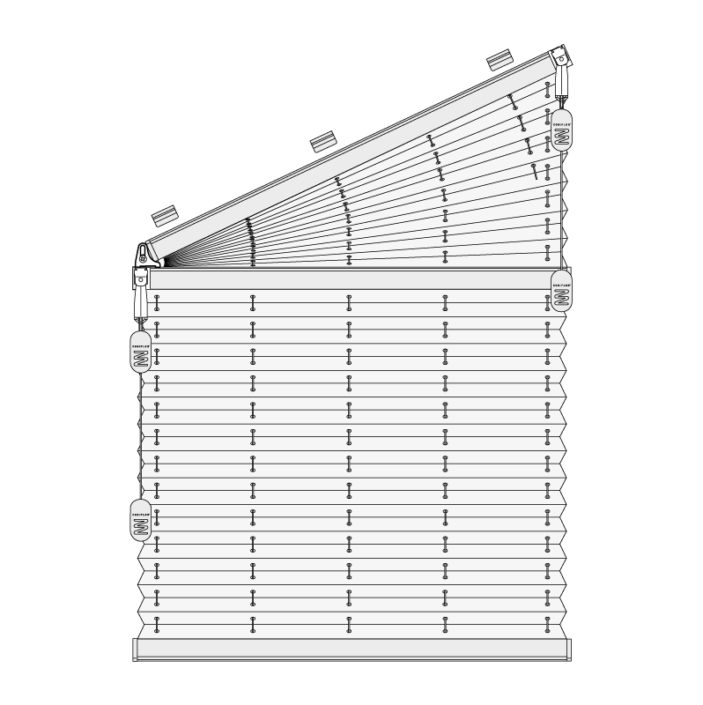

For vertical windows and shaped side windows
Size range: depends on model type and fabric width

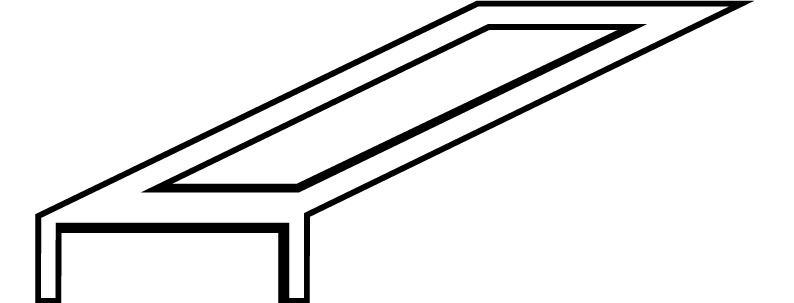

Roof blinds
Size range: max. width 150 cm / max. height 150 cm

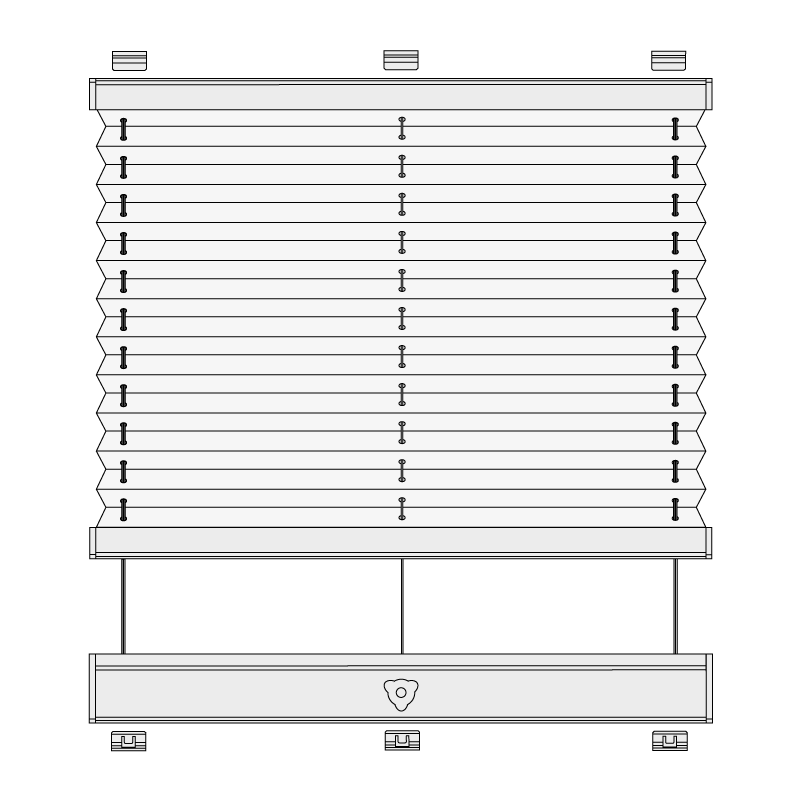

Roof blinds for rectangular windows
Size range: max. width 150 cm / max. height 350 cm

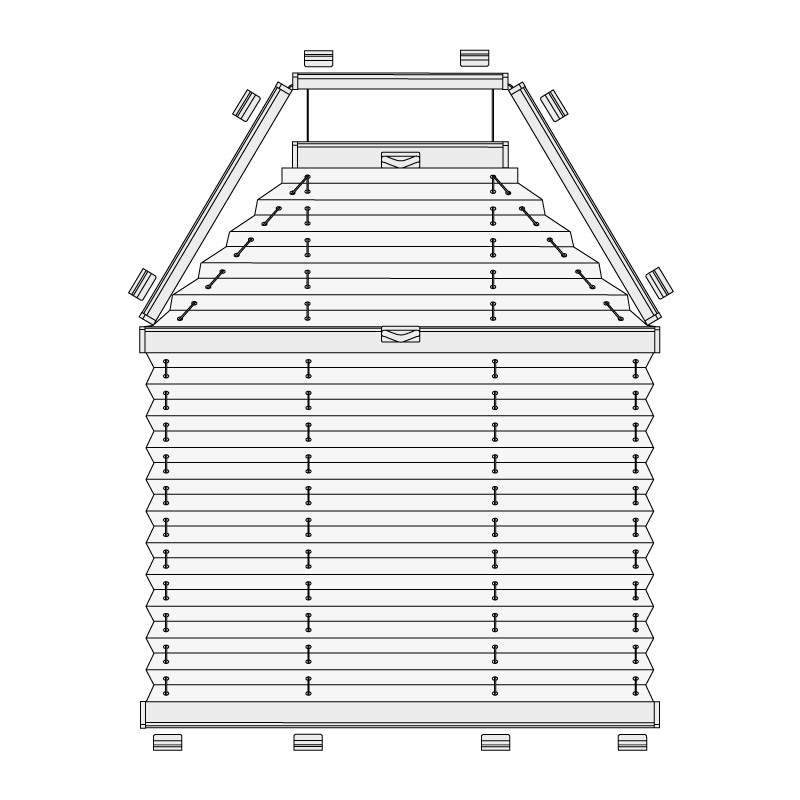

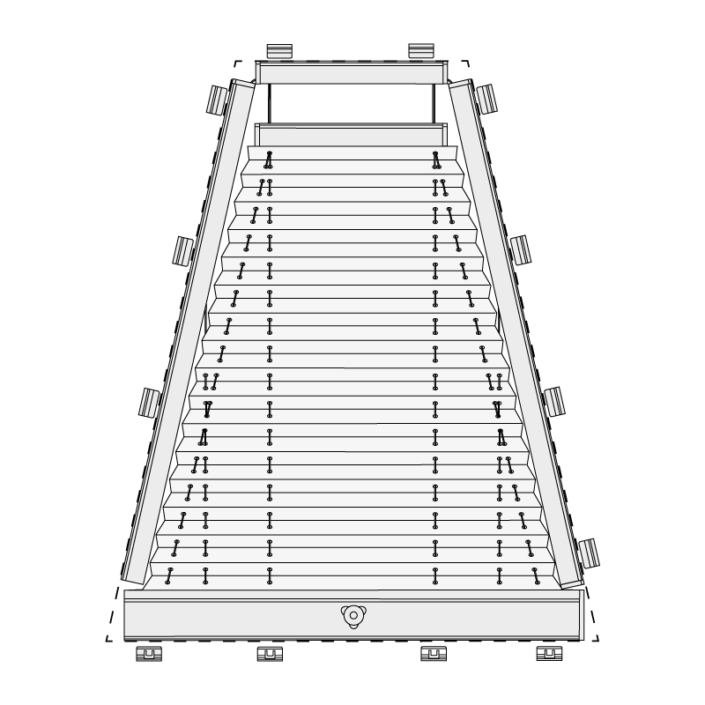

Roof blinds for special shaped windows
Size range: max. width 150 cm / max. height 350 cm

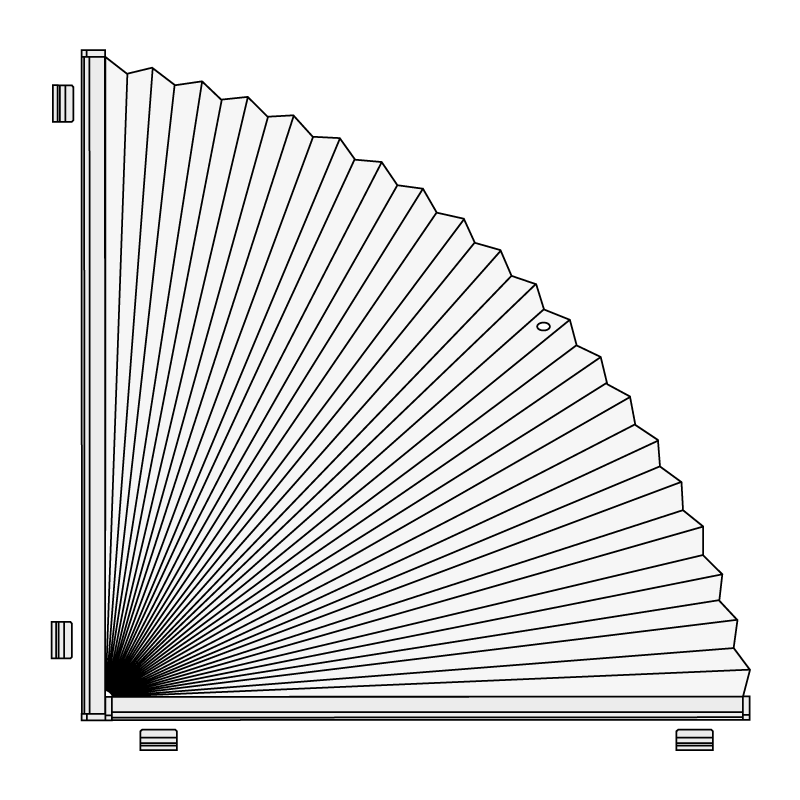

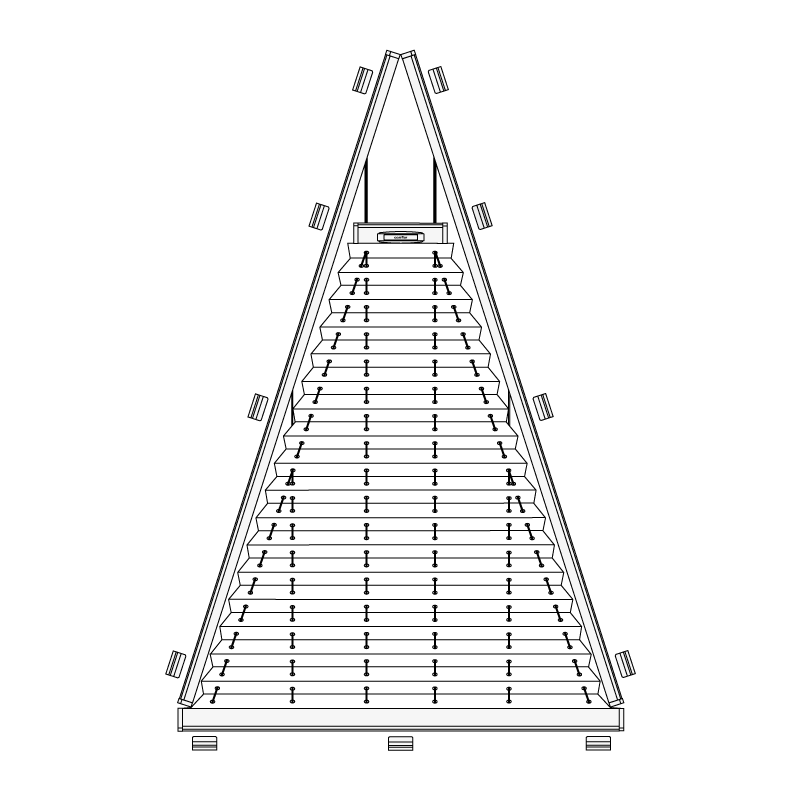

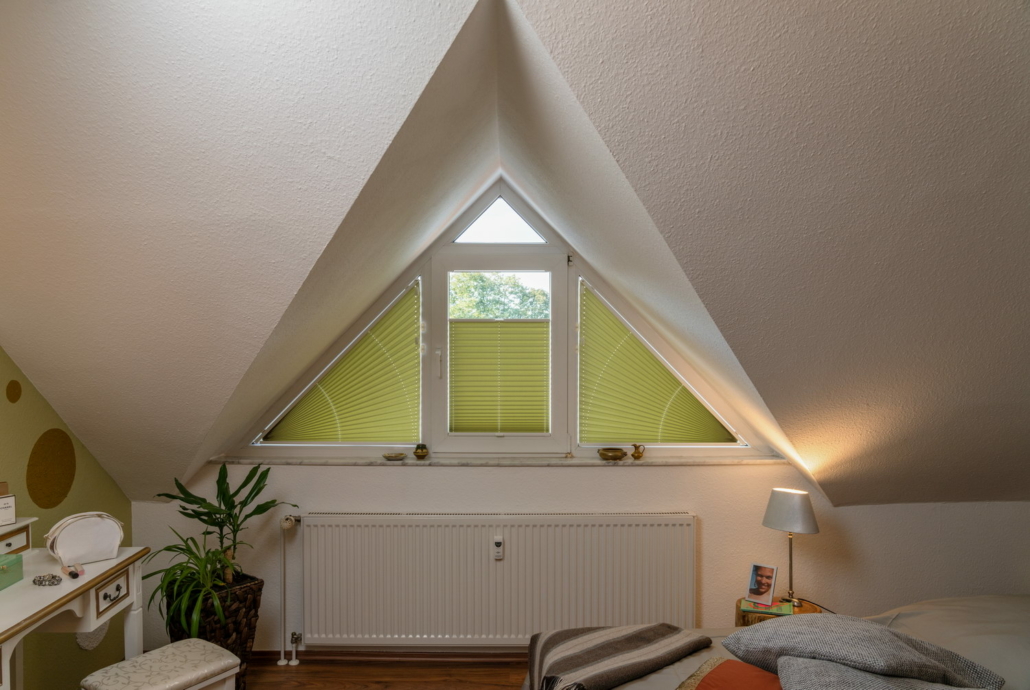

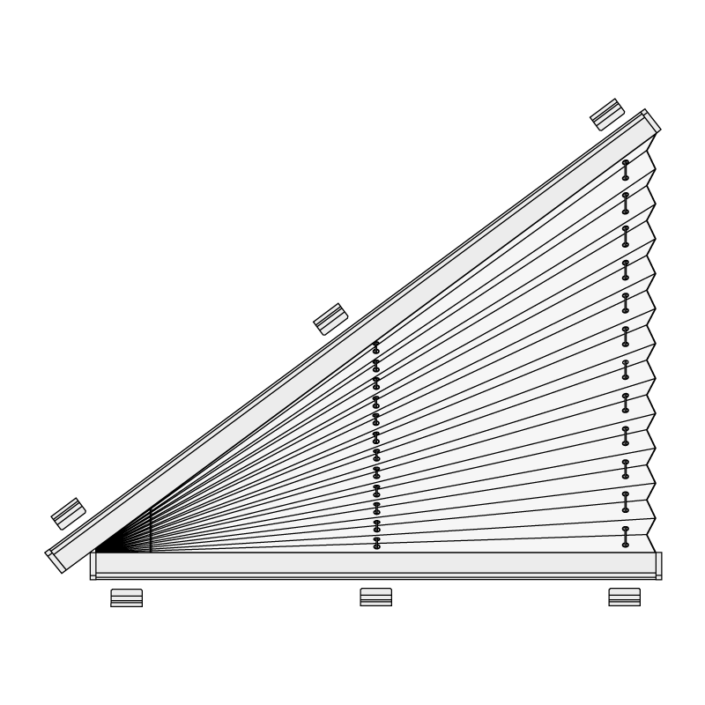

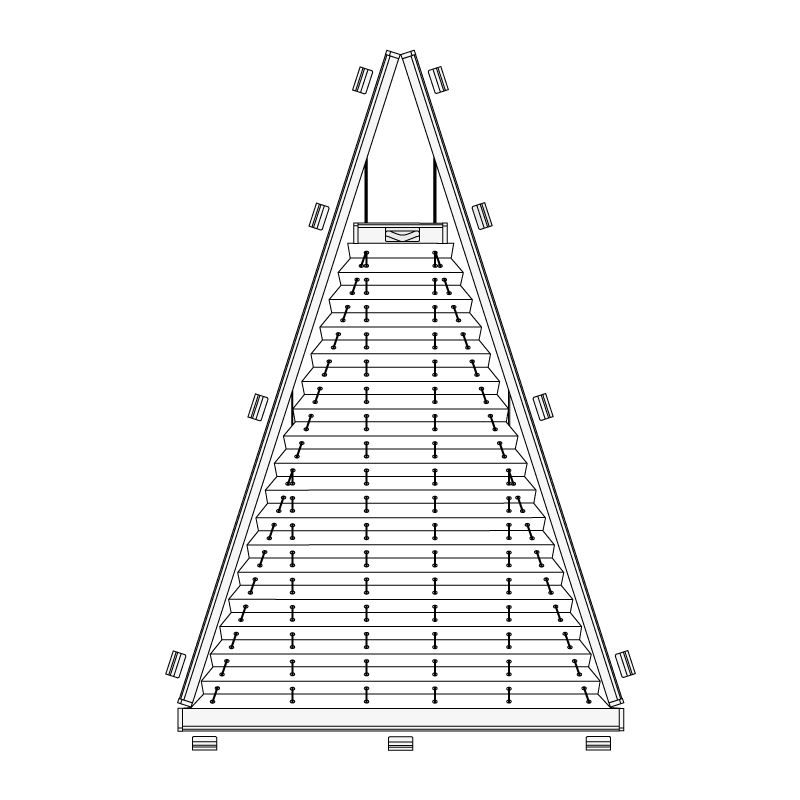

Pre-tensioned blinds for triangular and arched windows
Cosiflor Pleated Blinds in Function
